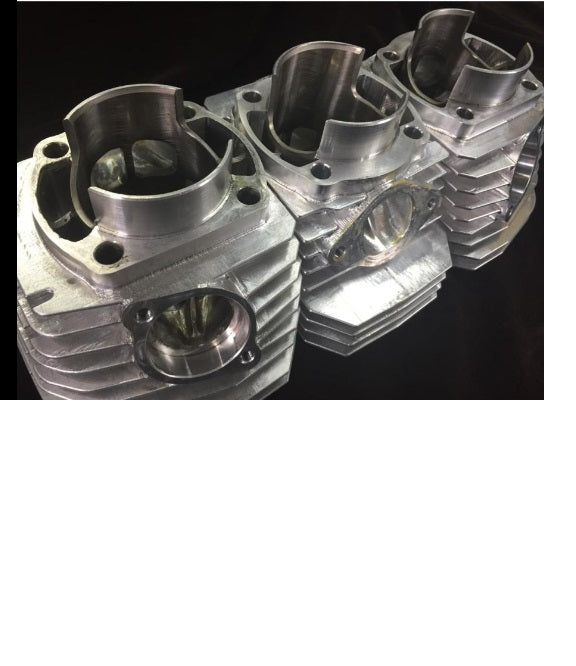

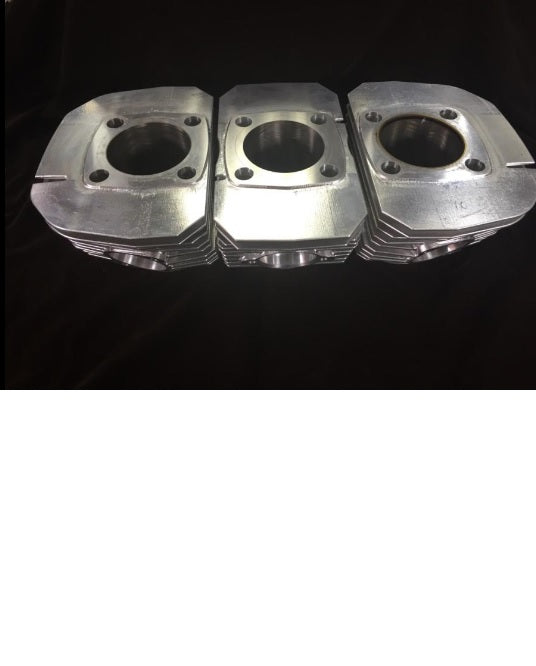

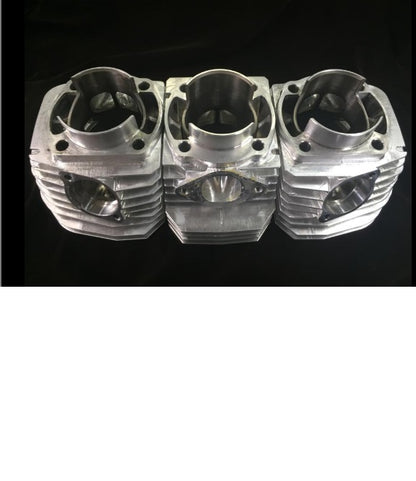

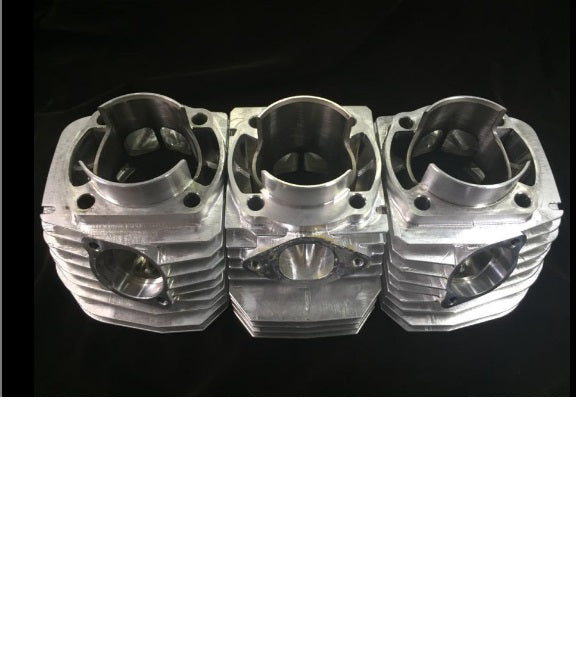

Kawasaki H2 750ss Machined Billet Cylinder Aluminized Cylinder liner Japan New

Item Specifics

Condition	New	Machine Type	N/A
Items Included	N/A	Manufacturer Part #	N/A
Compatible Model	H2	Material	Aluminum
Superseded Part	N/A	Vintage Part	No
Engine Type	2-Stroke	Brand	Kawasaki
Type	Cylinder	Interchange Part #	N/A
Manufacturer Warranty	3 Months	OE/OEM Part #	N/A
Country/Region of Manufacture	Japan	Finish	Polished
Performance Part	Yes	UPC	N/A

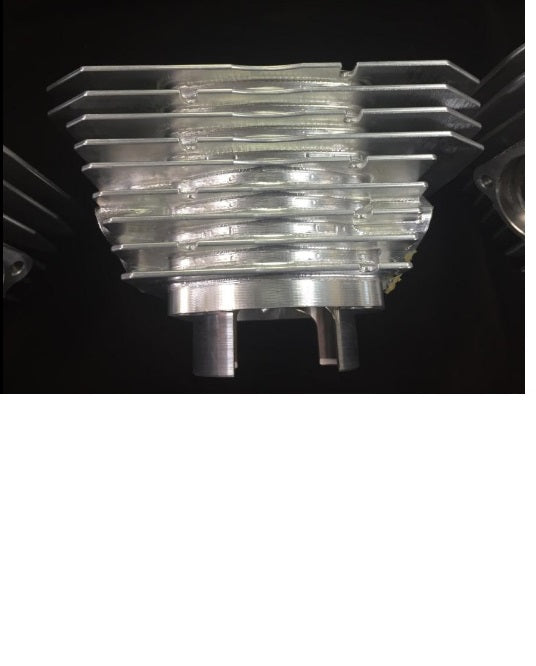

Thank you for visiting Inoue Boring shopify. Inoue Boring Co., Ltd. Original Kawasaki H2 Machined Aluminum Cylinder φ71 for Piston.

Note: The inner diameter of the machined aluminum cylinder uses an aluminum-plated cylinder equipped with the world’s only technology, and the intake and exhaust ports are bridge ports with pillars.

Why the H2 Cylinder Needed a Solution

• The H2 was well received for its strong acceleration, but the durability of the cylinder was not very good due to the emphasis on performance.
• The inner diameter of the cylinder was abnormally worn, and mechanical noise was immediately emitted.
• This had a significant impact on compression, performance, and durability.

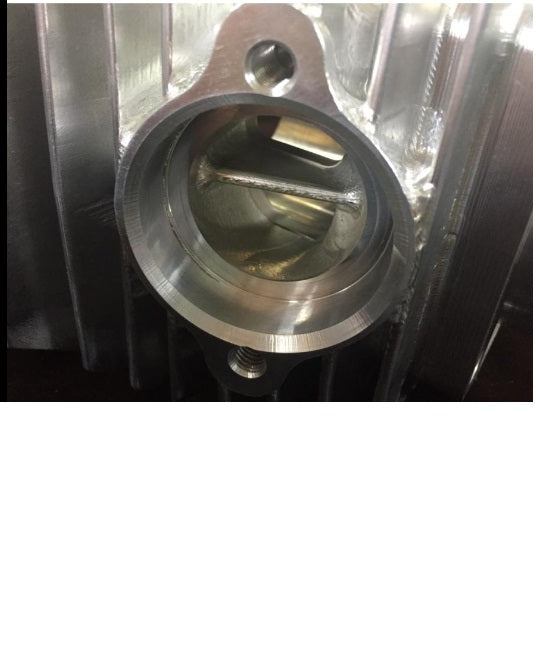

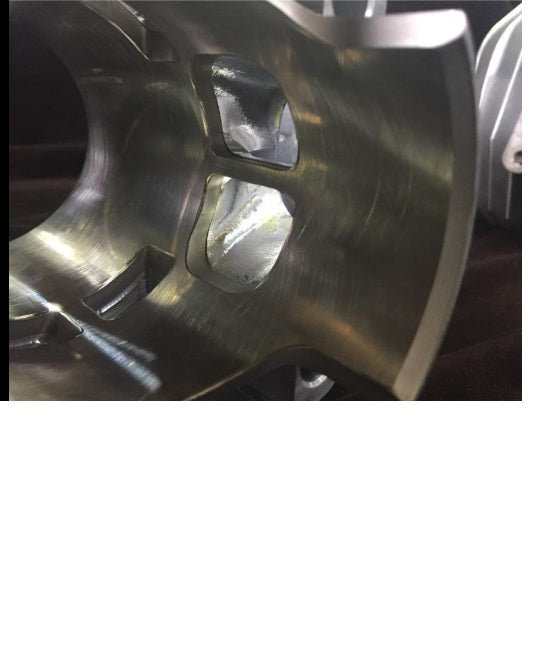

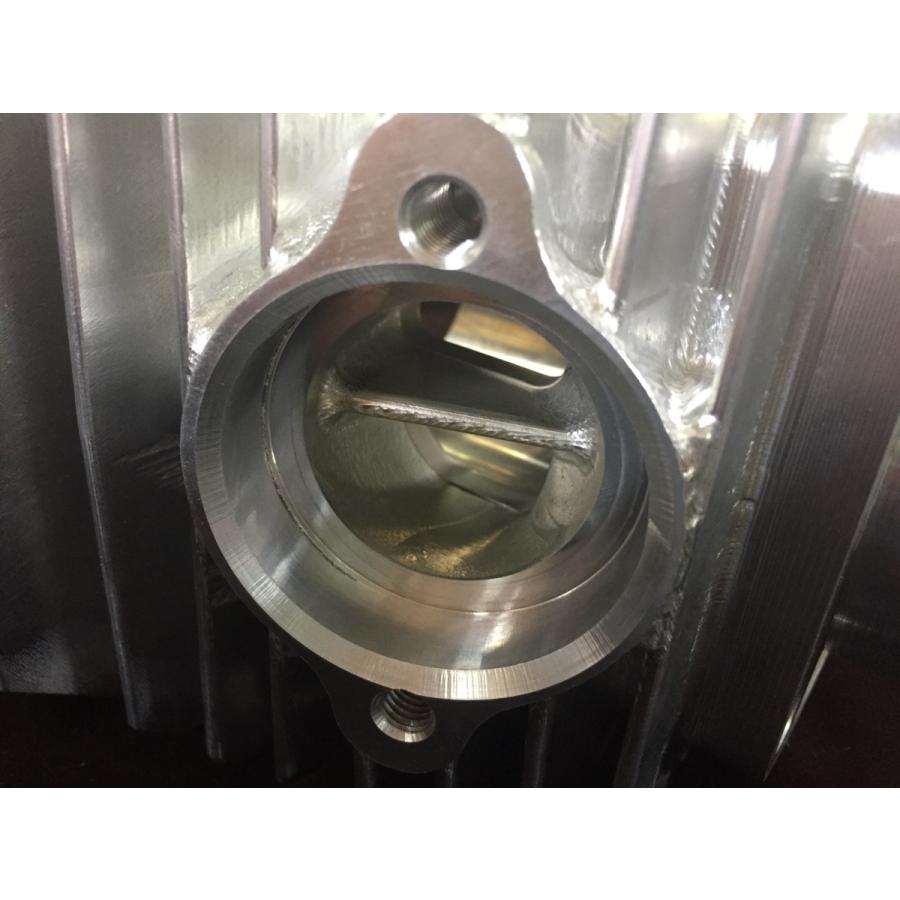

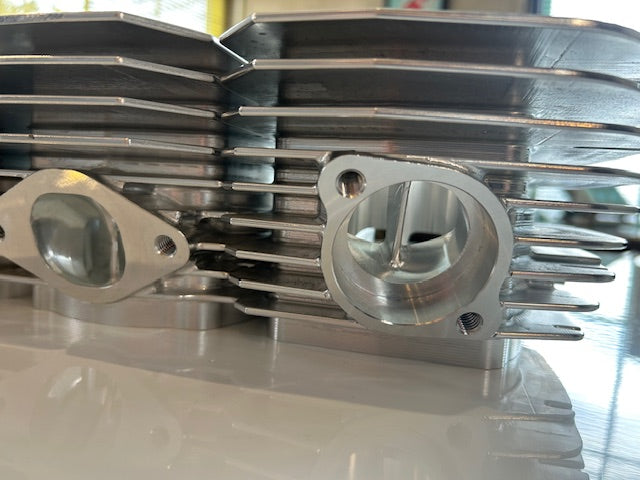

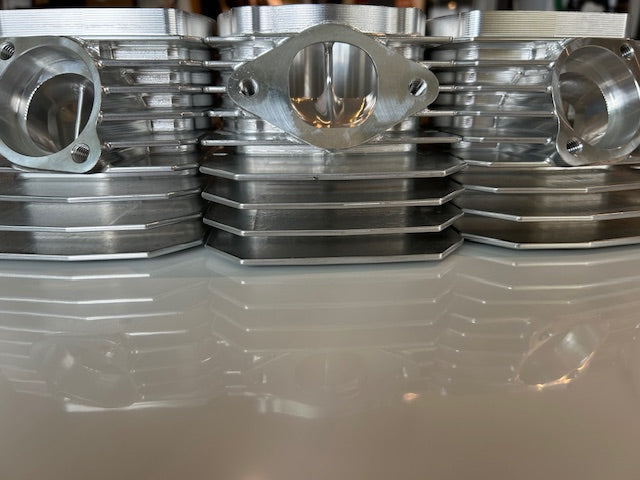

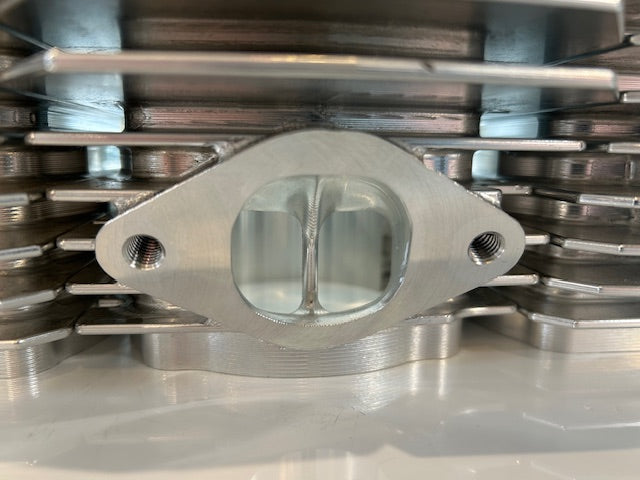

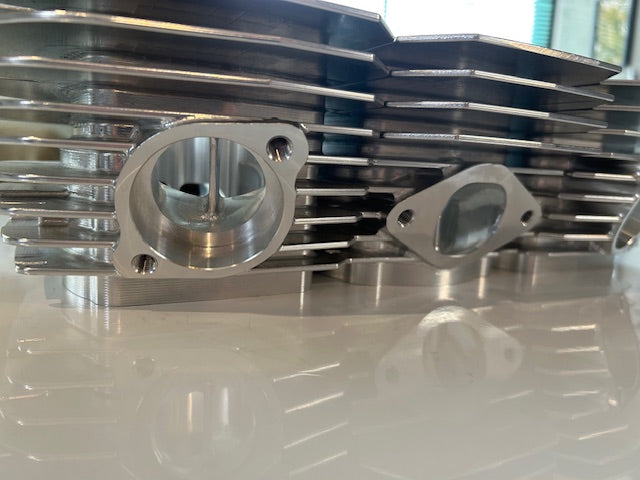

Bridge Port Design

• Bridgeport solves all the problems associated with H2 at once. In order to prevent pistons and piston rings from jumping into the large IN/EX port, it is a process to attach a pillar.
• This is the port shape that was actually used in the H1R and H2R racer machines of the time.

What Is ICBM™ Aluminized Cylinder?

• Compared to cast iron sleeves, plated sleeves have 23 times the hardness of the plating surface.
• Since it is aluminum, it is lightweight and conducts heat well, so it improves heat dissipation.
• It does not leave rust marks, so it is recommended for those who do not have many opportunities to ride a motorcycle.
• Nowadays, it has become a commonplace technology for new sports bikes, but by using the latest aluminum plated sleeves for vintage motorcycles, it is possible to improve durability and response comparable to modern motorcycles.

For the piston size, please use the standard size φ71.0.

Please use the one and only machined cylinder in Japan for your car!

Note: If you would like a different size, we can also make it to order! Please fill out the form below.

Compatibility

Year	Make	Model	Submodel	Notes
1975	Kawasaki	H2	Mach IV
1974	Kawasaki	H2	Mach IV
1973	Kawasaki	H2	Mach IV
1972	Kawasaki	H2	Mach IV
